Magnetic drive pumps (FLUIMAC)

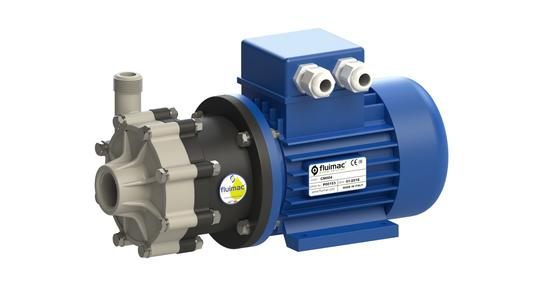

The separation of liquid chamber/atmosphere by means of an isolation shell is the best solution to pump aggressive chemical, high purity liquids and liquids difficult to seal. Hermetic seal-less injection moulded thermoplastic pumps are the best solution for light duty applications. Magnetic drive centrifugal pumps series COMPASS are made of Polypropylene and PVDF, and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, COMPASS series reduce the risks of leakage and emissions and the maintenance costs. The transmission of the motion occurs through magnetic joints without any mechanical seal and this design guarantees the maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension.

Characteristics:

  • Casing and impeller in PP/PVDF
  • O-ring in EPDM (standard for PP pumps) or VITON (standard for PVDF pumps)
  • PTFEC + ALLUMINA 99,7% (standard)
  • Max flow: 35 m3/h;
  • Max head 25 mts
  • Temperature: from -5 °C to +90°C
  • Max viscosity: 200 CPS
  • Max system pressure: 5 bar
  • Electric motors from 0,12Kw up to 4kW
