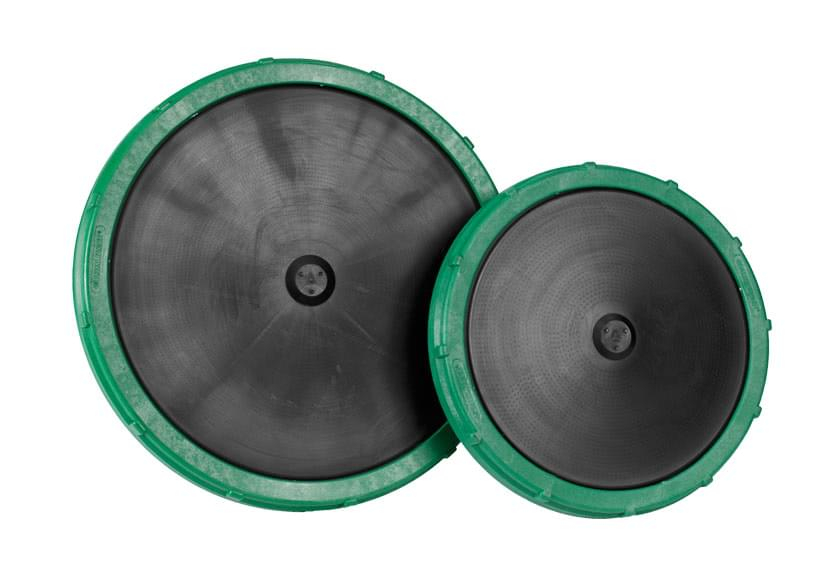

Disc Diffuser (JAEGER)

The disc diffuser series combines cost effective design, low installation costs, reliability and performance in intermittent and continuous aeration processes.

  • Precision die cut openings for high oxygen tranfer efficiency and performance: The operating pressure can be adjusted to customer or system specification by using different slit patterns varying the number and length of the slits and the spacing between the slits
  • Available in 3 standard diameters: 200 mm, 270 mm and 340 mm
  • Different standard and special membrane materials specially engineered for a wide spectrum of applications:
    • EPDM: municipal wastewater
    • Low plasticizer EPDM: animal processing, food processing, beverage production
    • Silicone: pulp and paper industry, petrochemical and refining processes

EPDM membranes can be equipped with an anti-fouling surface (PTFE coating) based on nano technology to prevent build up of solids and biological encrustations.
